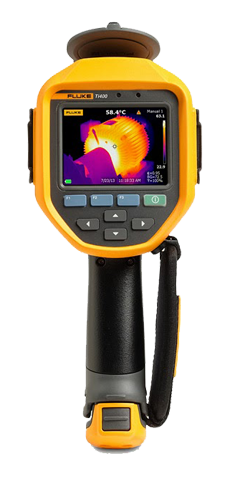

מצלמה תרמית בעלת ביצועים גבוהים במיוחד, עם חיישן 320x240 ורגישות תרמית של 0.05 מעלות
מושלמת לאנשי אחזקה וחשמלאים בשל התכונות הגבוהות שלה הכוללות סמן לייזר – פוקוס אוטמטי.
|
טמפרטורה |
|
|
תחום מדידת טמפרטורה | -20 °C
to +1200 °C |
|
דיוק מדידה |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
|
On-screen emissivity correction |
Yes (by number and table) |
|
On-screen reflected background temperature compensation |
Yes |
|
On-screen transmission correction |
Yes |
|
ביצועי צילום |
|
|
קצב דגימה |
9 Hz refresh rate or 60 Hz refresh rate depending upon model variation |
|
סוג חיישן |
Focal Plane Array, uncooled microbolometer, 320 x 240 pixels |
|
רגישות תרמית (NETD) |
≤ 0.05 °C at 30 °C target temp (50 mK) |
|
מספר פיקסלים |
76,800 |
|
Infrared spectral band |
7.5 μm to 14 μm (long wave) |
|
Visual (visible light) camera |
Industrial performance 5.0 megapixel |
|
עדשת אינפרא סטנדרטית |
|
|
Field of view |
24 ° x 17 ° |
|
Spatial resolution (IFOV) |
1.31 mRad |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
עדשת אינפרא טל-פוטו - אופציונלית |
|
|
Field of view |
12 ° x 9 ° |
|
Spatial resolution (IFOV) |
0.65 mRad |
|
Minimum focus distance |
45 cm (approx. 18 in) |
|
עדשת אינפרא זווית רחבה - אופציונלית |
|
|
Field of view |
46 ° x 34 ° |
|
Spatial resolution (IFOV) |
2.62 mRad |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
מנגנון פוקוס |
|
|
LaserSharp™ auto focus system |
Yes |
|
Advanced manual focus |
Yes |
|
IR-Fusion® |
|
|
Picture-in-Picture (PIP) |
Yes |
|
Full screen infrared |
Yes |
|
AutoBlend™ mode |
Yes |
|
Color
alarms |
High-temperature , low-temperature, and isotherm (user-selectable) |
|
לכידת תמונה ואחסון נתונים |
|
|
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
|
Storage medium |
Micro SD Memory Card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection |
|
File formats |
Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) |
|
No analysis software required for non-radiometric (.bmp and jpg) files |
|
|
Export file formats w/SmartView® software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
|
Memory review |
Thumbnail view navigation and review selection |
|
תכונות נוספות |
|
|
Voice annotation |
60 seconds maximum recording time per image; reviewable playback on imager |
|
IR-PhotoNotes™ |
Yes |
|
Wi-Fi connectivity |
Yes, to PC, iPhone®, iPad® and WiFi to LAN* |
|
Text annotation* |
Yes |
|
Video recording* |
Standard and radiometric |
|
Streaming video |
Via USB to PC and HDMI to HDMI compatible screen |
|
CNX wireless system* |
Yes |
|
Cardinal compass* |
Yes |
|
Auto capture (temperature and interval)* |
Yes |
|
Remote control and operation (for special and advanced applications) |
Yes |
|
מאפיינים כלליים |
|
|
Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
|
Storage temperature |
-20 °C to +50 °C (-4 °F to 122 °F) without batteries |
|
Relative humidity |
10 % to 95 % non-condensing |
|
Ruggedized touchscreen display (capacitive) |
8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight |
|
Controls and adjustments |
User selectable temperature scale (°C/°F) |
|
Language selection |
|
|
Time/Date set |
|
|
Emissivity selection |
|
|
Reflected background temperature compensation |
|
|
Transmission correction |
|
|
User selectable hot spot and cold spot, and center point on the image |
|
|
Expandable-contractable Measurement Box with MIN-AVG-MAX temp |
|
|
Color alarms |
|
|
User selectable backlight setting graphical information display preference |
|
|
Graphical information display preference |
|
|
Software |
SmartView® and SmartView Mobile App - full analysis and reporting software included |
|
Batteries |
Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level, all models |
|
Battery life |
Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage) |
|
Battery charge time |
2.5 hours to full charge |
|
AC battery charging |
Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter. All models |
|
AC operation |
AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included. |
|
Power saving |
User selectable sleep and power off modes |
|
Safety standards |
UL 61010-1:2012 CAN/CSA-C22.2 No.61010-1-12 IEC 61010-1 3rd Edition (2010) |
|
Electromagnetic compatibility |
EN 61326-1:2006 IEC 61326-1:2005 |
|
C Tick |
IEC/EN 61326-1 |
|
US FCC |
CFR 47, Part 15 Subpart B Class B |
|
Vibration |
0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6 |
|
Shock |
25 g, IEC 68-2-29 |
|
Drop |
Engineered to withstand 2 meter (6.5 feet) with standard lens |
|
Size (H x W x L) |
27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in) |
|
Weight (battery included) |
1.04 Kg (2.3 lb) |
|
Enclosure rating |
IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
|
Warranty |
Two-years (standard), extended warranties are available. |
|
Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
|
Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
